300TPD Refined Wheat Flour Mill Project in Algeria

300TPD is a floor design, basic needs six-story building, below is the diagram

300TPD flour mill project diagram

In:300-500TPD
Client: Ideals flour mill company
Date: 2012

Refined wheat flour mill project built in El Oued ,Algeria 2012, had build 3 years. It is one auto control wheat flour production line.

Capacity: Process 300T wheat per day.
Wheat: Hard wheat
Final flour: For local food such as Asid
Flour extraction rate: 70-75%
Power: 1080kw power consumption per ton wheat: 70KW.H, the voltage: 380V,50HZ

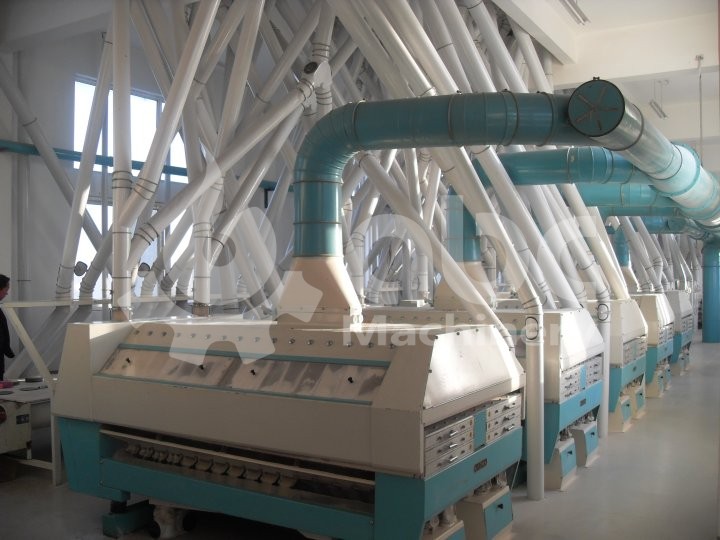

Adopts 16 sets of FMFQ1000/250 Pneumatic roller mill
The size of workshop: 60m×8.5m×27.5m (six-storey)
The number of the workers: It needs 3 shifts per day; every shift needs 10-12 workers.
Investment cost for machine only: Around 800,000 USD

This customer visited our factory for one time and then placed the order to us, he communicated with his estimate plan with our engineer group, and then we designed the whole workshop and the plant for him. After arranged the production, the machine shipped to the customer place, and after four months built, the machine started to produce flour and sold to the market directly. The flour is not only popular in local city, but also sold to the other place of the country such as Oran, Blida, Alger, Setif.
